C45-A2
2Flute Carbide endmills for Aluminum
HRC
45
For soft materials.
Find the metal hardness table here
Flutes Count
2 Flutes
Flutes Count
45° helix
P
STEEL
M
STAINLESS STEEL
K
CAST IRON
N
ALUMINUM, COPPER, BRASS
S
HIGH TEMP ALLOYS
H
HARDENED METALS
Dot
Optimally suited for ALUMINUM, COPPER, BRASS
Code
Diameter
Cut Len. x Shank x Total
Price
Stock
C45-A2-010
1.00mm
3mm x 4mm x 50mm
€9.50
12
Add To Basket
C45-A2-020
2.00mm
6mm x 4mm x 50mm
€9.50
14
Add To Basket
C45-A2-030
3.00mm
9mm x 3mm x 50mm
€9.50
9
Add To Basket
C45-A2-040
4.00mm
12mm x 4mm x 50mm
€9.50
11
Add To Basket
C45-A2-060
6.00mm
18mm x 6mm x 50mm
€13.00
11
Add To Basket
C45-A2-080
8.00mm
24mm x 8mm x 60mm
€18.00
13
Add To Basket
C45-A2-100
10.00mm
30mm x 10mm x 75mm
€27.00
10
Add To Basket
C45-A2-120
12.00mm
36mm x 12mm x 75mm
€38.00
10
Add To Basket
All prices includes 24% VAT
Description

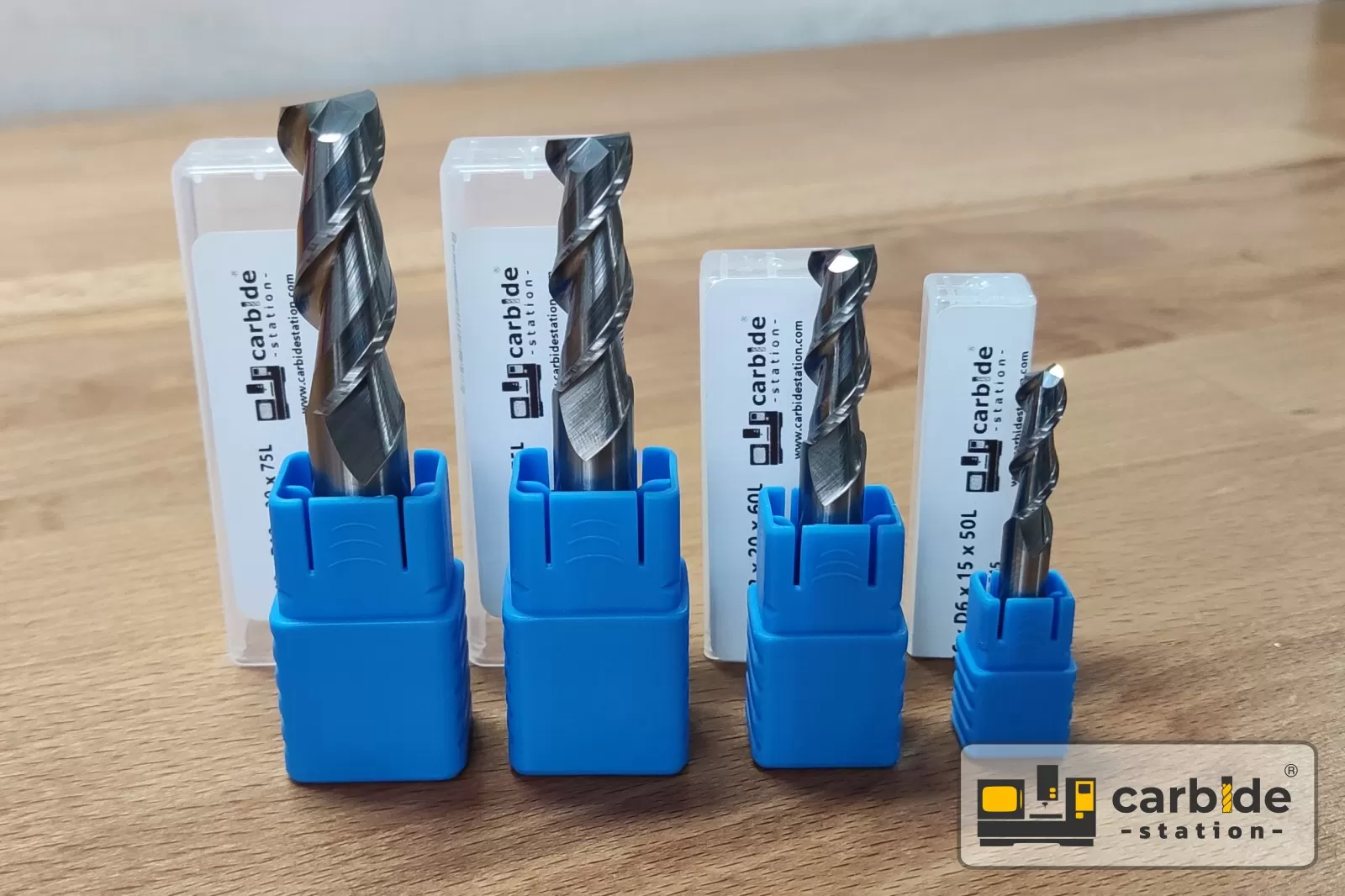

C45-A2 carbide endmills are designed for machining aluminum and non-ferrous metals such as brass and copper.

Their 45° helix angle offers more efficient chip evacuation and allows machining even on hard aluminum alloys such as 5083, 6061, 6082 and 7075. C45-A2 can be used even on polycarbonate materials and plastics such as HDPE, Acetal and PVC.

Perfect for:

  • Aluminum
  • Copper
  • Brass
  • PVC
  • Acetal
  • Polycarbonate sheets
  • Hardwoods (African Padauk)
  • Bone

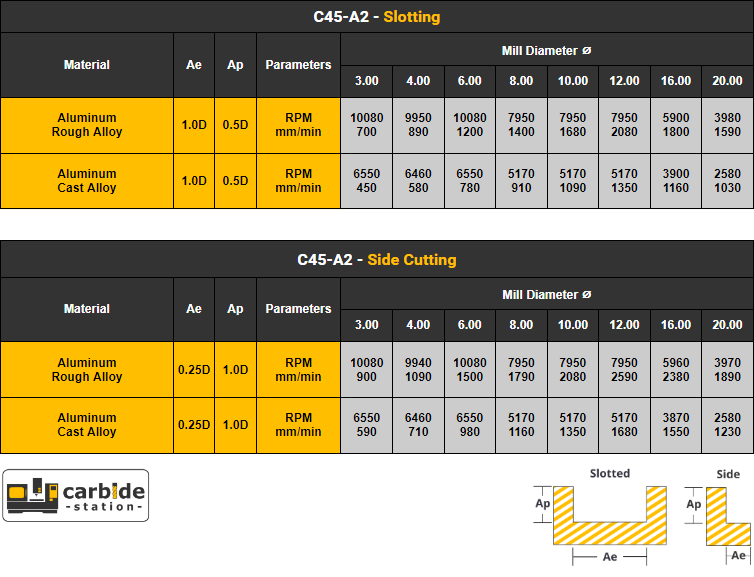

Recommended Feeds & Speeds
Recommended Feeds & Speeds
