C55-A3E (Economy)
3Flute Carbide endmills for Aluminum
HRC
55
55
For materials with hardness ≤48HRC.
Find the metal hardness table here
Find the metal hardness table here
3 Flutes
35° helix
| P STEEL |
M STAINLESS STEEL |
K CAST IRON |
N ALUMINUM, COPPER, BRASS |
S HIGH TEMP ALLOYS |
H HARDENED METALS |
|---|---|---|---|---|---|
 Optimally suited for ALUMINUM, COPPER, BRASS |
Code
Diameter
Cut Len. x Shank x Total
Price
Stock
C55-A3E-010
1.00mm
3mm x 4mm x 50mm
€7.90
15
C55-A3E-020
2.00mm
6mm x 4mm x 50mm
€7.90
15
C55-A3E-030
3.00mm
8mm x 4mm x 50mm
€7.90
14
C55-A3E-040
4.00mm
10mm x 4mm x 50mm
€8.00
15
C55-A3E-060
6.00mm
15mm x 6mm x 50mm
€12.50
14
C55-A3E-080
8.00mm
20mm x 8mm x 60mm
€16.00
13
C55-A3E-100
10.00mm
25mm x 10mm x 75mm
€24.00
8
C55-A3E-120
12.00mm
30mm x 12mm x 75mm
€34.00
9
C55-A3E-160
16.00mm
40mm x 16mm x 100mm
€48.00
0
C45-A3E-200
20.00mm
40mm x 20mm x 100mm
€62.00
0
All prices includes 24% VAT
Description

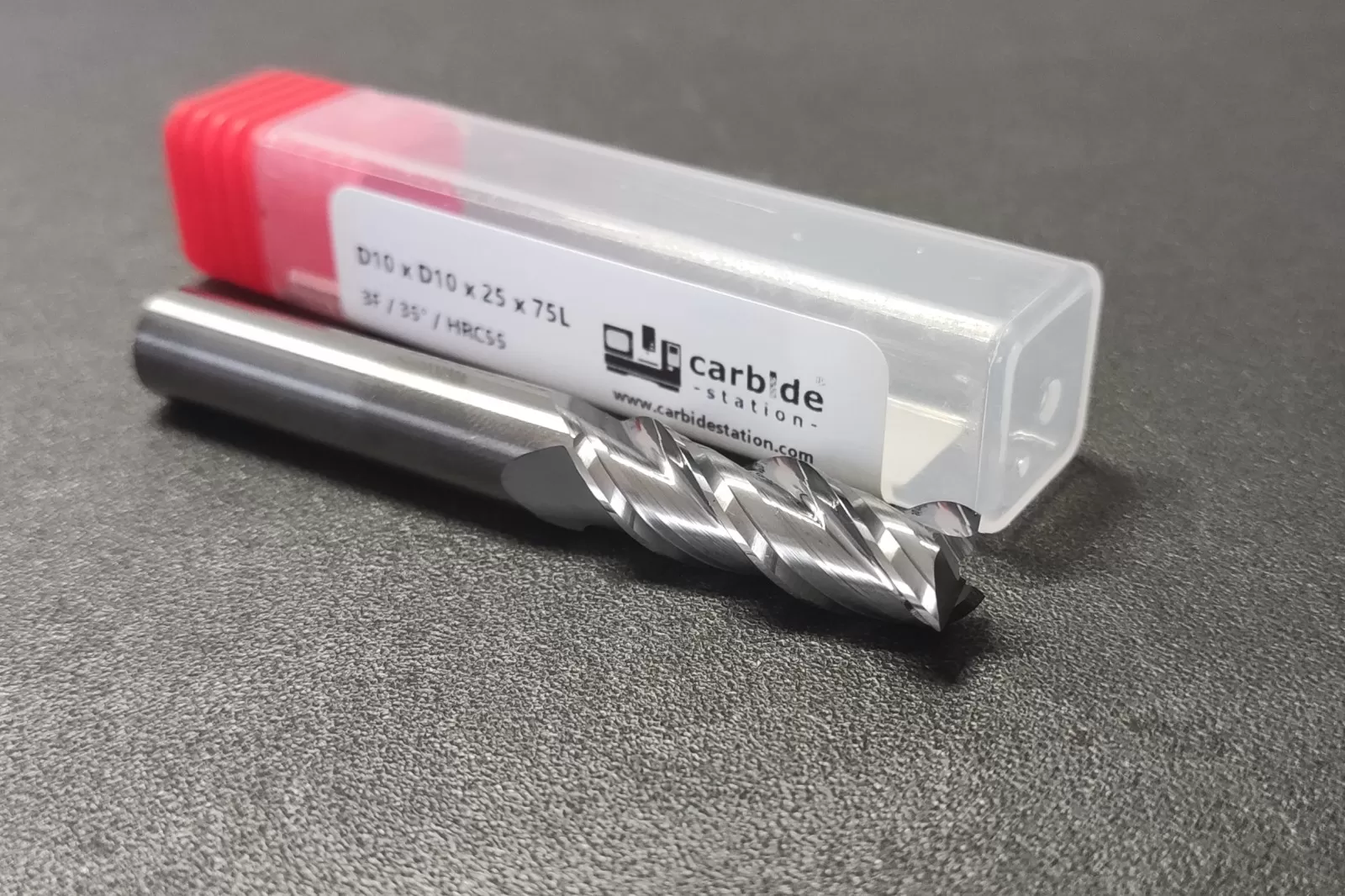

C55-A3 carbide endmills are designed for machining aluminum and non-ferrous metals such as brass and copper.
Their 45° helix angle offers more efficient chip evacuation and allows High Speed machining with minimal cooling even on hard aluminum alloys such as 5083, 6061, 6082 and 7075.
Perfect for:
- Aluminum
- Copper
- Brass

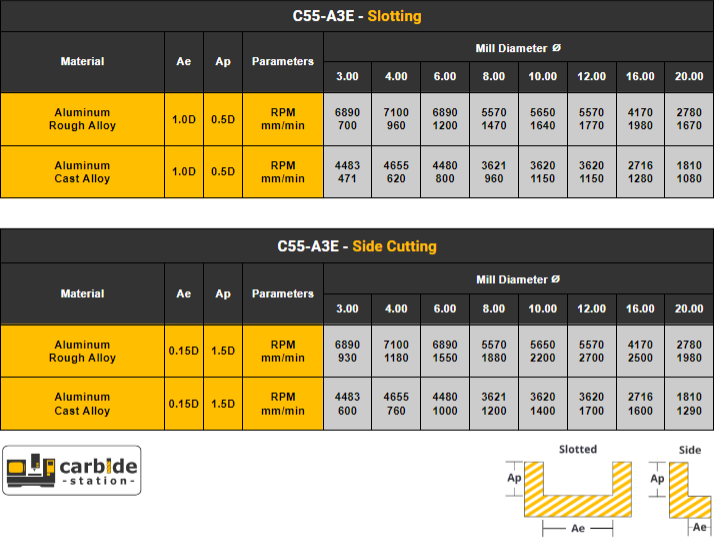

Recommended Feeds & Speeds
