C55-S2
2Flute Carbide Endmills TiSiN coated
HRC
55
55
For materials with hardness ≤48HRC.
Find the metal hardness table here
Find the metal hardness table here
2 Flutes
35° helix
TiSiN
Excellent wear resistance,
high temperature resistance,
low coefficient of friction, hardness
Read more about coatings here
high temperature resistance,
low coefficient of friction, hardness
Read more about coatings here
| P STEEL |
M STAINLESS STEEL |
K CAST IRON |
N ALUMINUM, COPPER, BRASS |
S HIGH TEMP ALLOYS |
H HARDENED METALS |
|---|---|---|---|---|---|
 Optimally suited for STEEL |
 Limitedly suited for STAINLESS STEEL |
Optimally suited for CAST IRON |
Limitedly suited for ALUMINUM, COPPER, BRASS |
Code
Diameter
Cut Len. x Shank x Total
Price
Stock
C55-S2-010
1.00mm
3mm x 4mm x 50mm
€7.50
14
C55-S2-020
2.00mm
6mm x 4mm x 50mm
€7.50
14
C55-S2-030
3.00mm
8mm x 4mm x 50mm
€7.50
14
C55-S2-040
4.00mm
10mm x 4mm x 50mm
€8.00
14
C55-S2-060
6.00mm
15mm x 6mm x 50mm
€11.00
15
C55-S2-080
8.00mm
20mm x 8mm x 60mm
€14.00
15
C55-S2-100
10.00mm
25mm x 10mm x 75mm
€23.00
9
C55-S2-120
12.00mm
30mm x 12mm x 75mm
€32.00
10
All prices includes 24% VAT
Description

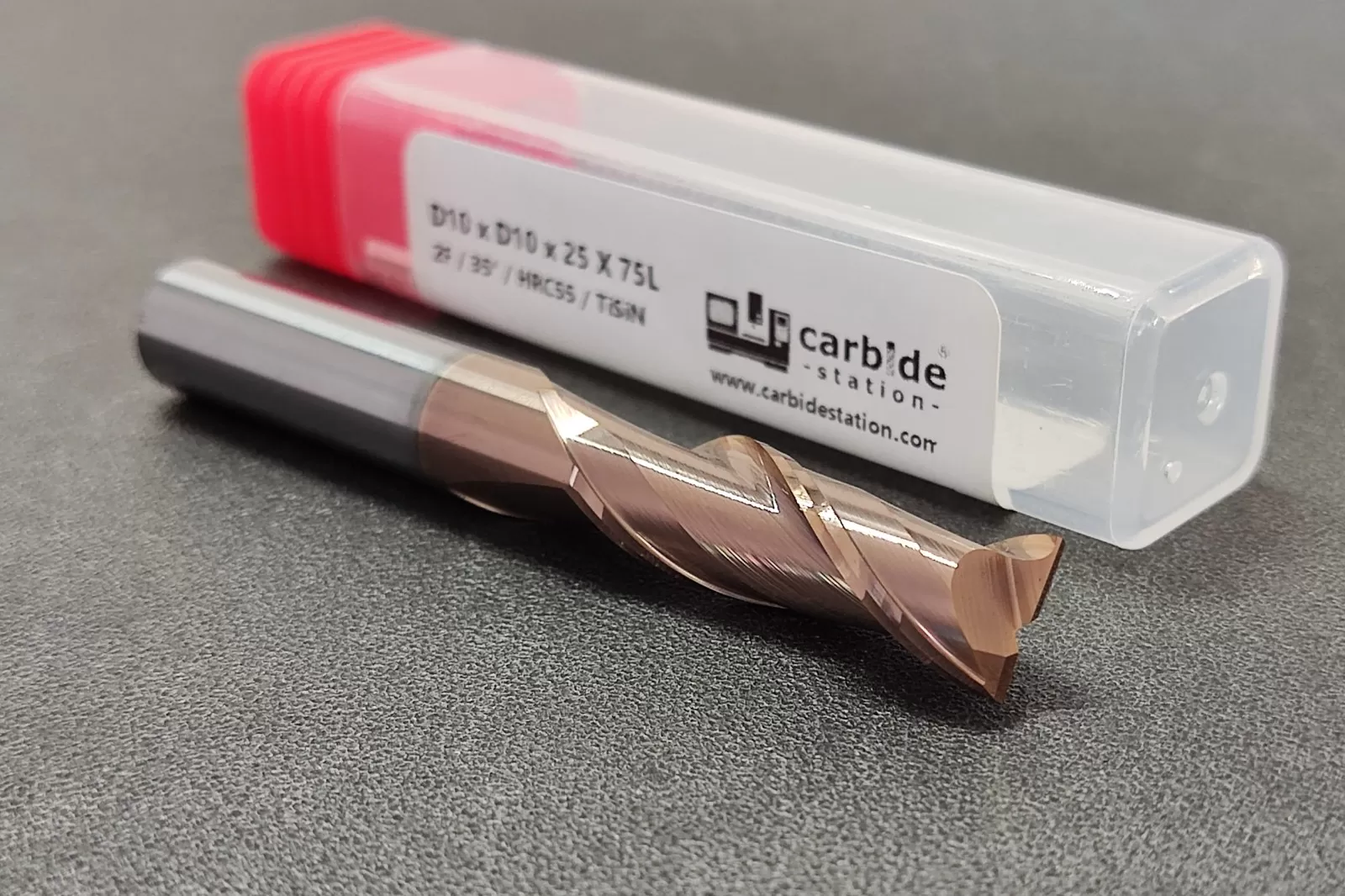

C55-S2 2-flute carbide endmills are suitable for machining mild steels and freecut metals.
C55-S2 endmills are coated with TiSiN (Titanium, Silicon, Nitrogen) which is designed to reduce friction, withstand high temperatures and resist wear. These properties make the TiSiN coating ideal for machining metals such as steel, cast iron and others.

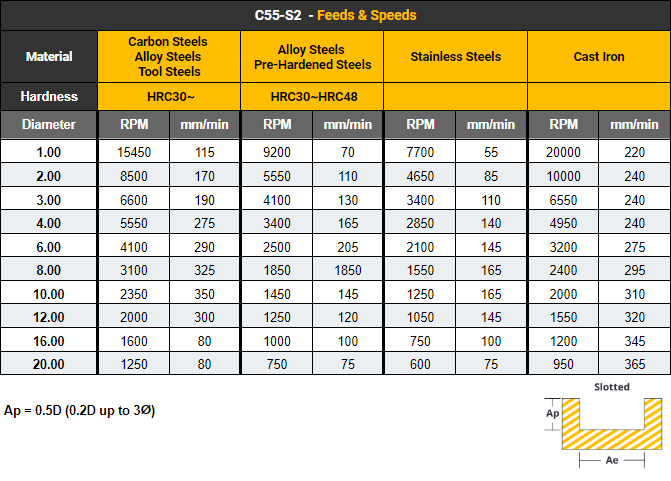

Recommended Cutting Conditions
